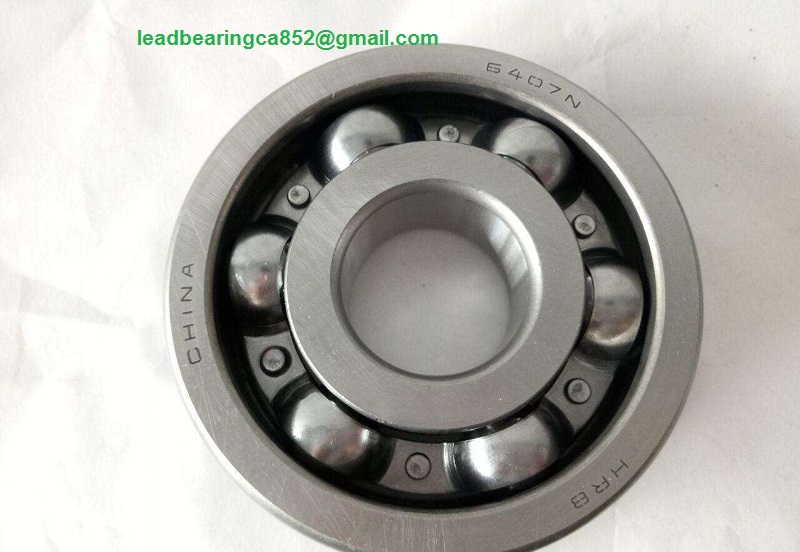

Deep Groove Ball Bearing

  • 6400 Series Deep Groove Radial Ball Bearings
  • 6400 Series Deep Groove Radial Ball Bearings
6400 Series Deep Groove Radial Ball Bearings 6400 Series Deep Groove Radial Ball Bearings

6400 Series Deep Groove Radial Ball Bearings

  • High precison
  • Machinery parts
  • Factory price
  • Power transmission
  • Product description: Available options include: metal shields (ZZ) or rubber seals (2RS), tolerance grades from Abec 1-9, internal clearance of C2 to C4, and several different cage designs.
  • INQUIRY
The 6400 series is suitable for high-speed applications. These radial ball bearings can withstand low to heavy radial loads and low to moderate thrust loads in both loading directions.

Available options include: metal shields (ZZ) or rubber seals (2RS), tolerance grades from Abec 1-9, internal clearance of C2 to C4, and several different cage designs.


Specification:

Item # (d) Bore Diameter (D) Outer Diameter (B) Width (C) Dynamic Load (Co) Static Load (Grease) Lubrication Speed (Oil) Lubrication Speed
6403 17 mm 62 mm 17 mm 22900 N 10800 N 12000 r/min 15000 r/min
6404 20 mm 72 mm 19 mm 30700 N 15000 N 10000 r/min 13000 r/min
6405 25 mm 80 mm 21 mm 35800 N 19300 N 9000 r/min 11000 r/min
6406 30 mm 90 mm 23 mm 43600 N 23600 N 8500 r/min 10000 r/min
6407 35 mm 100 mm 25 mm 55300 N 31000 N 7000 r/min 8500 r/min
6408 40 mm 110 mm 27 mm 63700 N 36500 N 6700 r/min 8000 r/min
6409 45 mm 120 mm 29 mm 76100 N 45000 N 6000 r/min 7000 r/min
6410 50 mm 130 mm 31 mm 87100 N 52000 N 5300 r/min 6300 r/min
6411 55 mm 140 mm 33 mm 99500 N 62000 N 5000 r/min 6000 r/min
6412 60 mm 150 mm 35 mm 108000 N 69500 N 4800 r/min 5600 r/min
6413 65.000 mm 160 mm 37 mm 119000 N 78000 N 4500 r/min 5300 r/min
6414 70.000 mm 180 mm 42 mm 143000 N 104000 N 3800 r/min 4500 r/min
6415 75.000 mm 190 mm 45 mm 153000 N 114000 N 3600 r/min 4300 r/min
6416 80.000 mm 200 mm 48 mm 163000 N 125000 N 3400 r/min 4000 r/min
6417 85.000 mm 210 mm 52 mm 174000 N 137000 N 3200 r/min 3800 r/min
6418 90.000 mm 225 mm 54 mm 186000 N 150000 N 3000 r/min 3600 r/m
