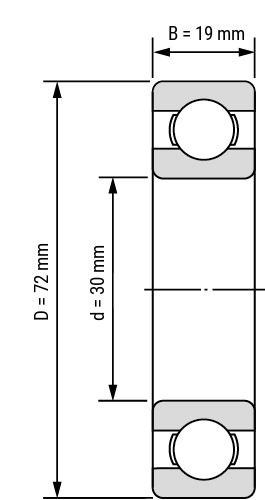

Inside Ø (mm): 30
Outside Ø (mm): 72
Width (mm): 19
max. Operating Temperature: +180°C
min. Operating Temperature: -70°C

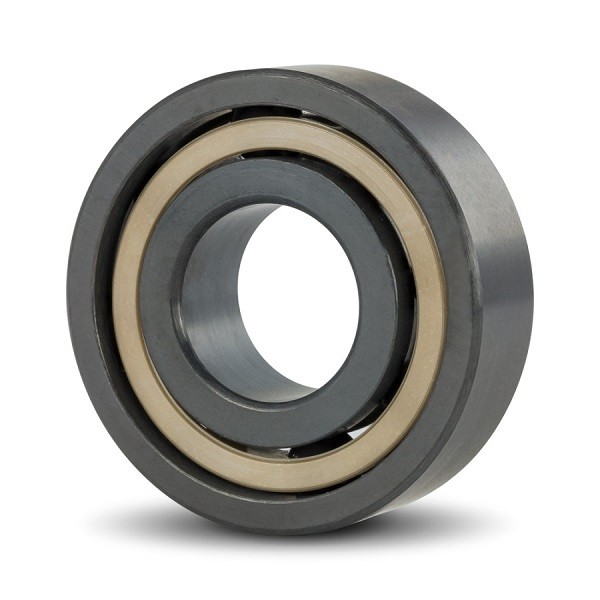

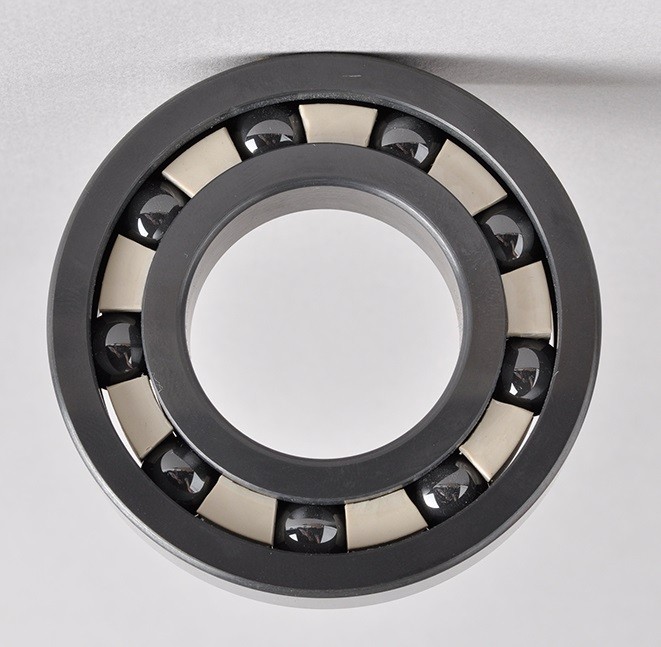

The all-ceramic deep groove ball bearing CE-6306-Si3N4-PEEK has ceramic bearing rings and rolling elements. It therefore has outstanding properties and meets even the highest demands, its main dimensions comply with DIN 625-1.
Features
1. extremely durable by high hardness and corrosion resistance
2. extremely high surface quality by greater rigidity
3. better emergency running characteristics compared to steel ball bearings
4. low tare weight, circa 40% lighter than bearings made of rolling bearing steel
5. suitable for dry run
6. current-insulating, low thermical conductivity
7. non-magnetic
8. extremely corrosion resistant
9. extremely resistant to chemicals
10. suitable for foodstuff-applications
11.material: silicon nitride Si3N4 (rings, balls), PEEK - polyetheretherketone (cage)
Technical Data
| Inside Ø (mm): | 30 |
| Outside Ø (mm): | 72 |
| Width (mm): | 19 |
| max. Operating Temperature: | +180°C |
| min. Operating Temperature: | -70°C |
| Tolerance Class: | ABEC 1 / P0 |
| Tolerance for inside-Ø (mm): | 0/-0,01 |
| Tolerance for outside-Ø (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Noise and vibration testing: | Class V |
| Extended Inner Ring: | no |
| Rows of Rolling Elements: | single row |
| Bore: | cylindrical |
| Internal Clearance: | CN (Standard) |
| Seal: | open |
| Sealing material: | without |
| Ring Material: | Ceramics |
| Rolling Element Material: | Ceramics |
| Cage Material: | PEEK |
| Magnetic: | no |
| Type of lubrication: | dry |
| Lifetime lubricated: | no |
| Norm: | DIN 625-1 |
| Item weight: | 0,16 kg |
