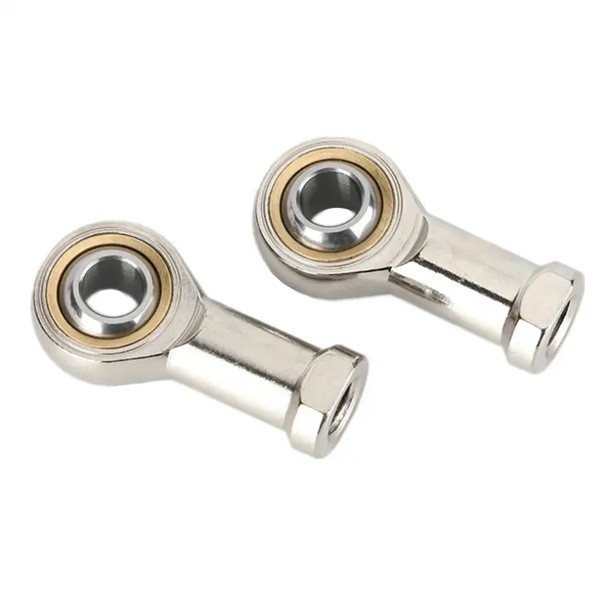

Rod end bearing Male thread Type - Model POS

Features

 The Rod End is a self-aligning plain bearing that uses a spherical inner ring which has the same level of accuracy and hardness as bearing steel balls. With the combination of a spherical inner ring a rationally designed holder, the Rod End ensures play free, extremely smooth rotation and oscillation.

Male thread Type - Model POS

This model is a highly rigid rod end that is basically the same as the female threading type model PHS, but has a male thread on the holder end.

Model No.	Outer dimensions			Threaded	Holder Dimensions			Grease nipple (Greasing hole)	Spherical inner ring dimensions				Mass
				S1
	L	D	Width	JIS Class 2	B	L1	ℓ						g
			B1		0.1
			0						d	Ball dia Da mm (inch)	d1	C
			–0.1						H7
POS 5	41	16	8	M5×0.8	6	33	20		5	11.112(7/16)	7.7	0.3	12.5
POS 6	45	18	9	M6×1	6.75	36	22	.	6	12.7(1/2)	9	0.3	19
POS 8	53	22	12	M8×1.25	9	42	25		8	15.875(5/8)	10.4	0.5	32
POS 10	61	26	14	M10×1.5	10.5	48	29		10	19.05(3/4)	12.9	0.5	54
POS 12	69	30	16	M12×1.75	12	54	33	PB107	12	22.225(7/8)	15.4	0.5	85
POS 14	77	34	19	M14×2	13.5	60	36		14	25.4(1)	16.9	0.7	126
POS 16	85	38	21	M16×2	15	66	40		16	28.575(11/8)	19.4	0.7	185
POS 18	93	42	23	M18×1.5	16.5	72	44		18	31.75(11/4)	21.9	0.7	260
POS 20	101	46	25	M20×1.5	18	78	47		20	34.925(13/8)	24.4	0.7	340
POS 22	109	50	28	M22×1.5	20	84	51		22	38.1(11/2)	25.8	0.7	435
POS 25	124	60	31	M24×2	22	94	57	A-M6F	25	42.862(111/16)	29.6	0.8	650
POS 30	145	70	37	M30×2	25	110	66		30	50.8(2)	34.8	0.8	1070
