Taper Roller Bearing

  • Metric MM taper roller bearing
  • Metric MM taper roller bearing
Metric MM taper roller bearingMetric MM taper roller bearing

Metric MM taper roller bearing

  • High precison
  • Machinery parts
  • auto bearing
  • Power transmission
  • Product description: Cars,Light Vehicles,Heavy Vehicles and Other Automobiles Marine Engines,Heavy Earth Movers and Industrial Movers,Agricultural Equipment,Construction Machinery,Conveyors,Fork Lift Trucks,Gears & Drives
  • INQUIRY

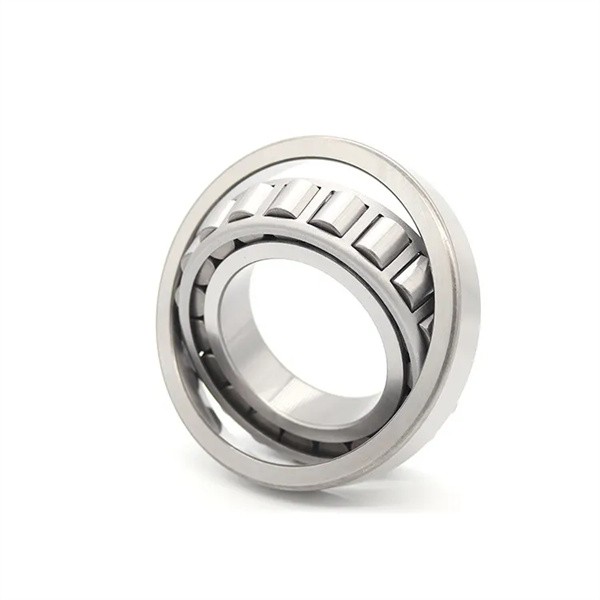

Taper roller bearings

The Taper Roller Bearings are mainly used for supporting axial forces equally in both direction of bearing. Here, the inner and outer raceways are segments of cones and made with a taper so the conical surfaces of the raceways and roller would all meet at a common point on the main axis of the bearing.


Available in pairs, these bearings are mainly used in construction, mining and agriculture industry. We provide them in all four major categories, which are single row, double row, and industrial row taper roller bearings. These are widely installed in cars, marine engines, light vehicles, agricultural equipments, steering etc.

Available Sizes :

  • Taper Roller Bearings - Inch Size : These are completely different from metric taper roller bearing; the inner ring with roller and cages assembly and the outer ring have individual designations.
  • Taper Roller Bearings - MM Size : The designating of bearings is done as per the international standards. The metric bearings have normal tolerances standards.
Features :
  • 30 / 31 / 32 / 33 / LM / HM series / Inches and MM series
  • 250mm OD (Outer Diameter) maximum capacity
  • Customized maximum till 300mm OD


Applications :
  • Cars, Light Vehicles, Heavy Vehicles and Other Automobiles
  • Marine Engines
  • Heavy Earth Movers and Industrial Movers
  • Agricultural Equipment
  • Construction Machinery
  • Conveyors
  • Fork Lift Trucks
  • Gears & Drives
  • Pumps
  • Wheel Assembly
  • Presses & Machine Tools

Metric MM series:

Sr No. Bearing No d D T
1 30302 J2 15 42 14.25
2 30203 J2 17 40 13.25
3 30303 J2 17 47 15.25
4 32303 J2/Q 17 47 20.25
5 32004 X/Q 20 42 15
6 30204 J2/Q 20 47 15.25
7 30304 J2/Q 20 52 16.25
8 32304 J2/Q 20 52 22.25
9 320/22X 22 44 15
10 32005X/Q 25 47 15
11 30205 J2/Q 25 52 16.25
12 32205 BJ2/Q 25 52 19.25
13 33205/Q 25 52 22
14 30305 J2 25 62 18.25
15 31305 J2 25 62 18.25
16 32305 J2 25 62 25.25
17 320/28X/Q 28 52 16
18 302/28 J2 28 58 17.25
19 322/28 BJ2/Q 28 58 20.25
20 32006X/Q 30 55 17
21 30206 J2/Q 30 62 17.25
22 32206 J2/Q 30 62 21.25
23 32206 BJ2/QCL7CVA606 30 62 21.25
24 33206/Q 30 62 25
25 30306 J2/Q 30 72 20.75
26 32306 J2/Q 30 72 20.75
27 32306 J2/Q 30 72 28.75
28 JL26749 F/710 32 53 14.5
29 320/32 X/Q 32 58 17
30 32007 X/Q 35 62 18
31 32007 J2/Q 35 62 18
32 30207 J2/Q 35 72 18.25
33 32207 J2/Q 35 72 24.25
34 33207/Q 35 72 28
35 30307 J2/Q 35 80 22.75
36 31307 J2/Q 35 80 22.75
37 32307 J2/Q 35 80 32.75
38 32307 BJ2/Q 35 80 32.75
39 32307/37 BJ2/Q 37 80 32.75
40 JL69349 A/310/Q 38 63 17
41 JL69349 X/310/Q 38 63 17
42 JL69349/310/Q 38 63 17
43 JL69345 F/310/Q 38 63 17
44 32008/38 X/Q 38 68 17
45 32008 X/Q 40 68 19
46 32008 XTN9/Q 40 68 19
47 33108/Q 40 75 0.51
48 30208 J2/Q 40 80 19.75
49 32208 J2/Q 40 80 24.75
50 33208/QCL7C 40 80 32
51 T2EE040/QVB134 40 85 33
52 30308 J2/Q 40 90 25.25
53 31308 J2/QCL7C 40 90 25.25
54 32308 J2/Q 40 90 35.25
55 32009 X/Q 45 75 20
56 33109/Q 45 80 26
57 358X/354X/Q 45 85 20.638
58 30209 J2/Q 45 85 20.75
59 32209 J2/Q 45 85 24.75
60 33209/Q 45 85 32
61 32210/45 BJ2/QVB022 45 90 24.75
62 T7FC045/HN3QCL7C 45 95 29
63 T2ED045 45 95 36
64 30309 J2/Q 45 100 27.25
65 31309 J2/QCL7C 45 100 27.25
66 32309 J2/Q 45 100 38.25
67 32309 BJ2/QCL7C 45 100 38.25
68 LM503349/310/QCL7C 46 75 18
69 32010X/Q 50 80 20
70 32010X/QCL7CVB026 50 80 20
71 33010/Q 50 80 24
72 JLM104948AA/910AA/Q 50 82 21.5
73 33110/Q 50 85 26
74 30210 J2/Q 50 90 21.75
75 32210 J2/Q 50 90 24.75
76 JM 205149/110/Q 50 90 28
77 JM 205149/110A/Q 50 90 28
78 33210/Q 50 90 32
79 T2ED050/Q 50 100 36
80 T7FC050/QCL7C 50 105 32
81 30310 J2/Q 50 110 29.25
82 31310 J2/QCL7C 50 110 29.25
83 32310 J2/Q 50 110 42.25
84 32310 TN9 50 110 42.25
85 32310 BJ2/QCL7C 50 110 42.25
86 32011 X/Q 55 90 23
87 33011/Q 55 90 27
88 33111/Q 55 95 30
89 30211 J2/Q 55 100 22.75
90 32211 J2/Q 55 100 26.75
91 33211/Q 55 100 35
92 T2ED055/QCLN 55 110 39
93 T7FC055/QCL7C 55 115 34
94 30311 J2/Q 55 120 31.5
95 31311 J2/QCL7C 55 120 31.5
96 32311 J2 55 120 45.5
97 32311 BJ2/QCL7C 55 120 45.5
98 32012 X/QCL7C 60 95 23
99 JLM508748/710/Q 60 95 24
100 33012/Q 60 95 27
101 33112/Q 60 100 30
102 30212 J2/Q 60 110 23.75
103 32212 J2/Q 60 110 29.75
104 33212/Q 60 110 38
105 T2EE060/Q 60 115 40
106 T7FC060/QCL7C 60 125 37
107 30312 J2/Q 60 130 33.5
108 31312 J2/QCL7C 60 130 33.5
109 32312 J2/Q 60 130 48.5
110 32312 BJ2/QCL7C 60 130 48.5
111 32013 X/Q 65 100 23
112 33013/Q 65 100 27
113 JM511946/910/Q 65 110 28
114 T2DD065/Q 65 110 31
115 33113/Q 65 110 34
116 30213 J2/Q 65 120 24.75
117 32213 J2/Q 65 120 32.75
118 33213/Q 65 120 41
119 33213 TN9/Q 65 120 41
120 T7FC065/QCL7C 65 130 37
121 30313 J2/Q 65 140 36
122 31313 J2/QCL7C 65 140 36
123 32313 J2/Q 65 140 51
124 32313 BJ2/QU4CL7CVQ267 65 140 51
125 32014 X/Q 70 110 25
126 33014 70 110 31
127 33114/Q 70 120 37
128 30214 J2/Q 70 125 26.25
129 32214 J2/Q 70 125 33.25
130 33214/Q 70 125 41
131 T2ED070/QCLNVB061 70 130 43
132 T7FC070/QCL7C 70 140 39
133 30314 J2/Q 70 150 38
134 31314 J2/QCL7C 70 150 38
135 32314 J2/Q 70 150 54
136 32314 BJ2/QCL7C 70 150 54
137 32915TN9/QVG900 75 105 20
138 32015 X/Q 75 115 25
139 33015/Q 75 115 31
140 JM714249/210/Q 75 120 31
141 33115/Q 75 125 37
142 30215 J2/Q 75 130 27.25
