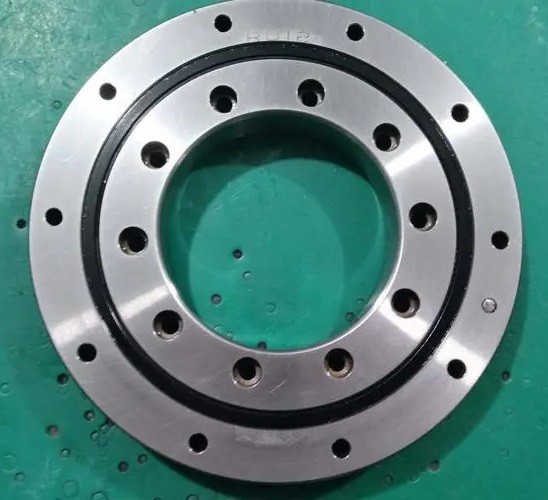

MTO-324X Slewing Ring Bearing Turntable Bearing

MTO-324X
Slewing Ring Ball Bearing
Outside Diameter of Outer Ring (Do) 20.486" | 520.34mm
Inside Diameter of Inner Ring (di) 12.770" | 324.36mm
Height of Overall Bearing Assembly (H) 2.375" | 60.33mm
Height of Inner Ring (Hi)/Height of Outer Ring (Ho) 2.063" | 52.4mm
Approximate Weight (lbs) 105lbs | 47.627KG

MTO-324X Slewing Ring Bearing Turntable Bearing

MT Series slewing ring bearings have a rectangular cross-section and range in size from 4 – 47 inches OD (100 – 1200 mm). They provide optimal economy and capacity for a given envelope dimension.

Design Features

The internal configuration consists of deep groove gothic arch raceways and maximum ball complement. This results in a four-point contact design which provides exceptional moment, thrust, and radial load capacities. Integral face riding seals for the larger sizes and non-contact shields for the smaller assist in the exclusion of contaminants. These features make them an ideal choice for a

wide range of applications from light to heavy duty.

MT SERIES.png

MT Series bearings are offered in non-geared (MTO) and externally geared (MTE) configurations. The gears are Fellows Stub Involute up to the MTE-324 size and Stub Involute for larger sizes, all manufactured to AGMA Class Q6 quality. Contact Kaydon for tooth backlash allowance.

Part numbers ending in a “T” suffix have threaded mounting holes. Thread depths are a minimum of 1.5 times the nominal hole size diameter indicated.Part numbers ending in an "X" suffix provide additional load capacity.

Applications

MT Series bearings have been used successfully in a wide range of applications from light to heavy duty.

The smaller sizes are well suited for:

❚ Manipulators

❚ Jib cranes

❚ Lift-assist devices

❚ Work positioners

Larger sizes are well suited for:

❚ Truck-mounted cranes

❚ Aerial lifts

❚ Hoists

❚ Small wind turbines

❚ Non-precision positioning tables

Specifications

Part Number

MTO-324X

Moment Load Rating (Crm)

102,400ft-lbs | 457.143KN

Bearing Types

Slewing Ring Bearing

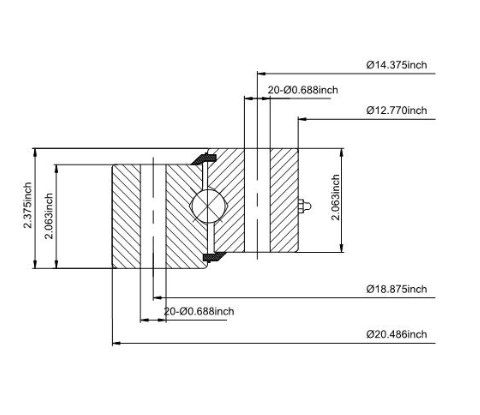

Outline Dimensions and Weight

Outside Diameter of Outer Ring (Do)

20.486" | 520.34mm

Inside Diameter of Inner Ring (di)

12.770" | 324.36mm

Height of Overall Bearing Assembly (H)

2.375" | 60.33mm

Height of Inner Ring (Hi)/Height of Outer Ring (Ho)

2.063" | 52.4mm

Approximate Weight (lbs)

105lbs | 47.627KG

Mounting Holes

Bolt Circle in Outer Ring (Lo)

18.875" | 479.43mm

Number Holes in Outer Ring (no)

20

Size of Hole in Outer Ring (Bo)

0.688"

Bolt Circle in Inner Ring (Li)

15.375" | 390.53mm

Number Holes in Inner Ring (ni)

20

Size of Hole in Inner Ring (Bi)

0.688"
