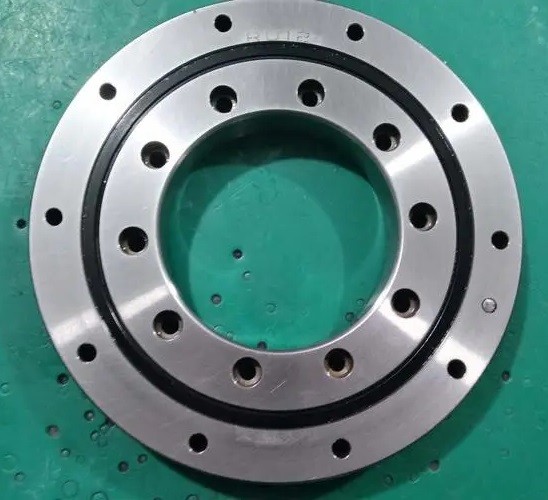

MTO-122T Slewing Ring Bearing Turntable Bearing

MTO-122T
Slewing Ring Ball Bearing
Outside Diameter of Outer Ring (Do) 8.898" | 226.01mm
Inside Diameter of Inner Ring (di) 4.803" | 122mm
Height of Overall Bearing Assembly (H) 1.339" | 34.01mm
Height of Inner Ring (Hi)/Height of Outer Ring (Ho) 1.142" | 29.01mm
Approximate Weight (lbs) 13lbs | 5.897KG

MT-122T Slewing Ring Bearing Turntable Bearing

MT Series slewing ring bearings have a rectangular cross-section and range in size from 4 – 47 inches OD (100 – 1200 mm). They provide optimal economy and capacity for a given envelope dimension.

Design Features

The internal configuration consists of deep groove gothic arch raceways and maximum ball complement. This results in a four-point contact design which provides exceptional moment, thrust, and radial load capacities. Integral face riding seals for the larger sizes and non-contact shields for the smaller assist in the exclusion of contaminants. These features make them an ideal choice for a

wide range of applications from light to heavy duty.

MT SERIES.png

MT Series bearings are offered in non-geared (MTO) and externally geared (MTE) configurations. The gears are Fellows Stub Involute up to the MTE-324 size and Stub Involute for larger sizes, all manufactured to AGMA Class Q6 quality. Contact Kaydon for tooth backlash allowance.

Part numbers ending in a “T” suffix have threaded mounting holes. Thread depths are a minimum of 1.5 times the nominal hole size diameter indicated.Part numbers ending in an "X" suffix provide additional load capacity.

Applications

MT Series bearings have been used successfully in a wide range of applications from light to heavy duty.

The smaller sizes are well suited for:

❚ Manipulators

❚ Jib cranes

❚ Lift-assist devices

❚ Work positioners

Larger sizes are well suited for:

❚ Truck-mounted cranes

❚ Aerial lifts

❚ Hoists

❚ Small wind turbines

❚ Non-precision positioning tables

Specifications

Part Number

MTO-122T

Moment Load Rating (Crm)

5,020ft-lbs | 22.411KN

Bearing Types

Slewing Ring Bearing

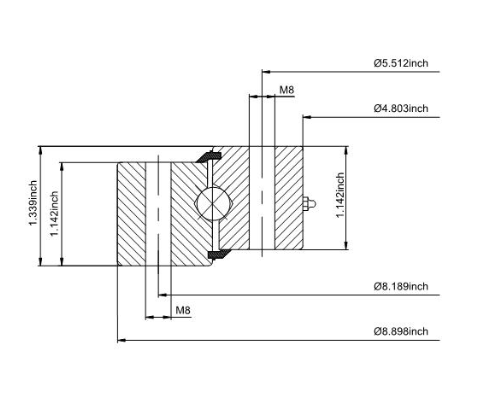

Outline Dimensions and Weight

Outside Diameter of Outer Ring (Do)

8.898" | 226.01mm

Inside Diameter of Inner Ring (di)

4.803" | 122mm

Height of Overall Bearing Assembly (H)

1.339" | 34.01mm

Height of Inner Ring (Hi)/Height of Outer Ring (Ho)

1.142" | 29.01mm

Approximate Weight (lbs)

13lbs | 5.897KG

Mounting Holes

Bolt Circle in Outer Ring (Lo)

8.189" | 208mm

Number Holes in Outer Ring (no)

12

Size of Hole in Outer Ring (Bo)

M8

Bolt Circle in Inner Ring (Li)

5.512" | 140mm

Number Holes in Inner Ring (ni)

12

Size of Hole in Inner Ring (Bi)

M8
