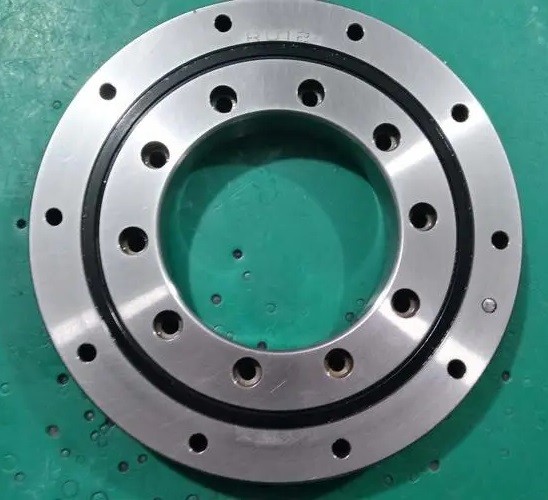

HS6-29P1Z Slewing Ring Bearing Turntable Bearing

HS6-29P1Z
Slewing Ring Ball Bearing
Outside Diameter of Outer Ring (Do) 33.400" | 848.36mm
Inside Diameter of Inner Ring (di) 25.000" | 635mm
Approximate Weight (lb) 186lbs | 84.368KG

HS6-29P1Z Slewing Ring Bearing Turntable Bearing

HS Series slewing ring bearings provide exceptional load and thrust capacity in a surprisingly small envelope. They are similar in size to Kaydon’s popular RK series, but have a rectangular cross-section and less internal diametral clearance. This lets them handle about twice the moment load (up to 139,900 ft-lbs.).

HS Series bearings feature a 4-point contact design, deep groove gothic arch raceways and a maximum ball complement. They are available in sizes from 20” to 47” O.D. (500mm-1,200mm), with internal gearing, external gearing, or no gearing. All have integral seals to protect against contamination and two fittings for lubrication.

HS vs. RK: more capacity in the same space

The HS Series offers up to twice the static capacity of our RK Series in the same envelope. Although they use the same pinion, gear, and ring hardness, HS and RK bearings have different designs, clearance and mounting arrangements.

External Configuration - A rectangular cross-section provides more stiffness than the RK Series, which has an L-shaped cross-section with a mounting flange. The result is about twice the load capacity.

Internal Configuration - A deep groove gothic arch raceway provides four points of contact with the balls, so that the bearing simultaneously supports radial, axial and moment loads. The rectangular cross-section reduces distortion with better load distribution than the RK Series and allows lower internal clearance. These features, combined with maximum ball complement (from using spacers for ball separation), optimize bearing capacity.

Gearing - HS Series bearings can be ordered with internal gearing, external gearing or no gearing. The gears are Involute Stub designs with 20° pressure angles, manufactured to AGMA Class Q5, with .015” to .025” allowance for backlash. The HS is also an excellent alternative to an MT bearing when internal gearing is needed.


Specifications

Part Number

HS6-29P1Z

Moment Load Rating (Crm)

111,900ft-lbs | 499.554KN

Pressure Angle of Gear Teeth (α)

20 º

Maximum Allowable Gear Tooth Load (Fz)

-

Bearing Types

Slewing Ring Bearing

Outline Dimensions and Weight

Outside Diameter of Outer Ring (Do)

33.400" | 848.36mm

Inside Diameter of Inner Ring (di)

25.000" | 635mm

Approximate Weight (lb)

186lbs | 84.368KG

Mounting Holes

Bolt Circle in Outer Ring (Lo)

32.000" | 812.8mm

Number Holes in Outer Ring (no)

15

Bolt Circle in Inner Ring (Li)

26.500" | 673.1mm

Number Holes in Inner Ring (ni)

18
