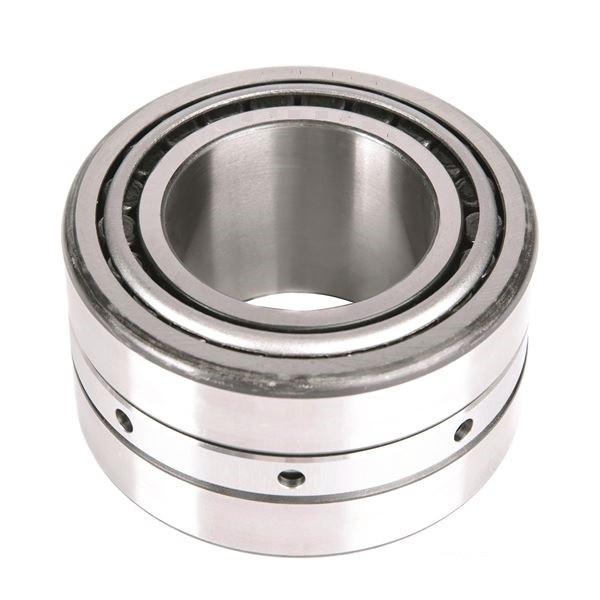

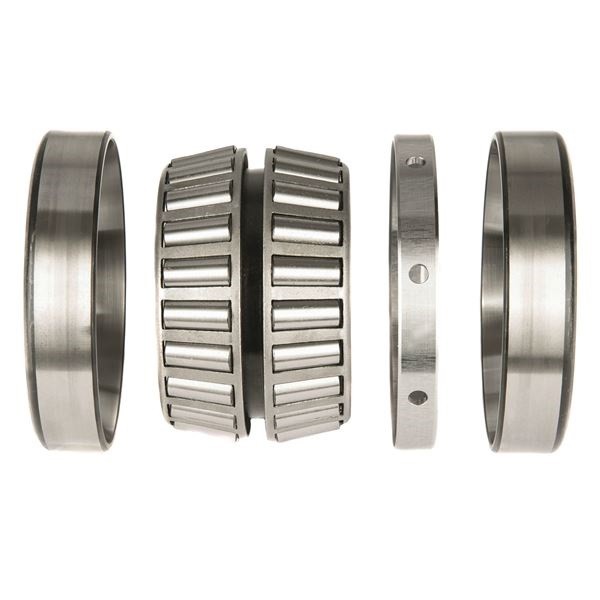

HH249949D-HH249910 Double Row Tapered Roller Bearing

Inner

Outer

Shaft

Housing

Max shaft fillet radius R(4)

Backing shoulder Dia.da

Max housing fillet radius R(4)

Backing shoulder Dia.Db

G1

G2

G3

mm

mm

mm

mm

kg

in.

in.

in.

in.

lbs.

EE130900D

131400

1.5
0.06

247.0
9.72

1.5
0.06

329.0
12.95

1162.0

167.6

0.1358

43.45
95.81

EE130903D

131400

8.0
0.31

259.0
10.20

1.5
0.06

329.0
12.95

1162.0

167.6

0.1358

50.40
111.14

EE430901D

431575

3.3
0.13

250.7
9.87

3.3
0.13

360.0
14.17

1351.2

142.8

0.1572

81.54
179.79

EE700090D

700167

3.5
0.14

259.0
10.20

6.4
0.25

381.0
15.00

1488.7

109.7

0.1480

106.49
234.79

EE113090D

113170

6.4
0.25

271.5
10.69

6.4
0.25

375.0
14.76

966.7

98.1

0.1723

102.14
225.16

8576D

8520

1.5
0.06

250.0
9.84

3.3
0.13

305.0
12.01

1050.5

172.4

0.1401

24.86
54.82

H247549D

H247510

1.5
0.06

259.0
10.20

6.4
0.25

346.0
13.62

1964.4

148.4

0.1638

98.04
216.13

EE127094D

127138

1.5
0.06

257.0
10.12

3.3
0.13

327.0
12.87

1178.6

164.4

0.1392

36.78
81.09

EE821096D

821165

3.3
0.13

268.0
10.55

6.4
0.25

380.0
14.96

1493.2

126.1

0.1597

101.84
224.52

EE127097D

127135

1.5
0.06

258.0
10.16

3.3
0.13

325.0
12.80

1178.6

164.4

0.1392

33.77
74.43

EE127097D

127138

1.5
0.06

258.0
10.16

3.3
0.13

327.0
12.87

1178.6

164.4

0.1392

35.08
77.32

EE127097D

127140

1.5
0.06

258.0
10.16

3.3
0.13

327.0
12.87

1178.6

164.4

0.1392

35.12
77.41

LM247748D

LM247710

1.5
0.06

257.0
10.12

3.3
0.13

310.0
12.20

1173.3

243.9

0.1345

21.53
47.46

HH249949D

HH249910

3.3
0.13

278.0
10.94

6.4
0.25

366.0
14.41

2373.9

173.3

0.1746

120.05
264.65

EE171000D

171400

1.5
0.06

269.0
10.59

3.3
0.13

334.0
13.15

1068.6

171.6

0.1354

27.99
61.70

M249748D

M249710

3.3
0.13

272.5
10.73

3.3
0.13

335.0
13.19

1626.0

173.0

0.1526

42.34
93.34

M249748D

JM249712

3.3
0.13

272.5
10.73

3.0
0.12

336.0
13.23

1626.0

173.0

0.1526

44.36
97.78
