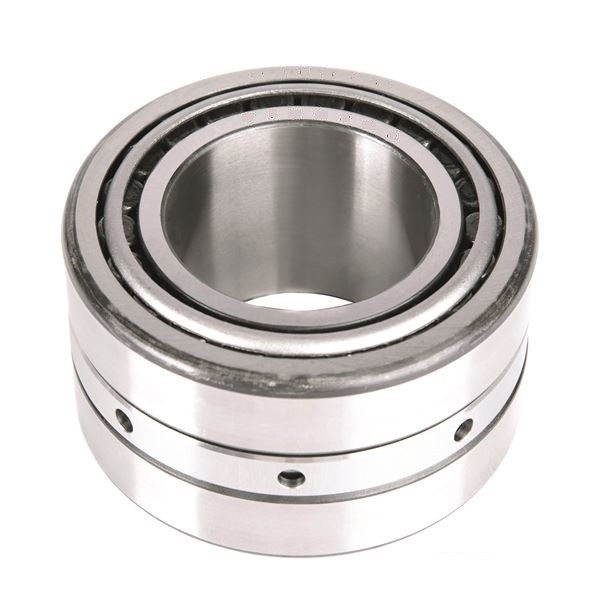

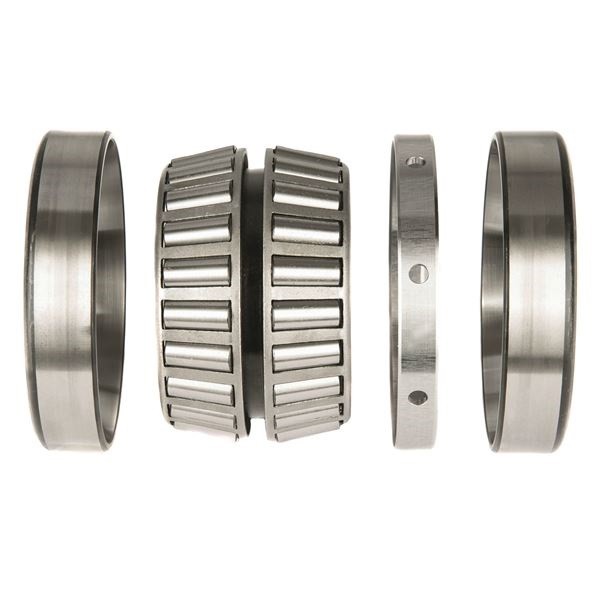

EE324103D-324160 Double Row Tapered Roller Bearing

Inner

Outer

Shaft

Housing

Max shaft fillet radius R(4)

Backing shoulder Dia.da

Max housing fillet radius R(4)

Backing shoulder Dia.Db

G1

G2

G3

mm

mm

mm

mm

kg

in.

in.

in.

in.

lbs.

EE171000D

171436

1.5
0.06

269.0
10.59

3.3
0.13

338.0
13.31

1068.6

171.6

0.1354

30.85
68.02

EE171000D

171450

1.5
0.06

269.0
10.59

3.3
0.13

340.0
13.39

1068.6

171.6

0.1354

32.05
70.66

HM252343D

HM252310

3.5
0.14

281.0
11.06

3.3
0.13

392.0
15.43

1504.3

147.8

0.1482

81.05
178.65

HM252343D

HM252315

3.5
0.14

281.0
11.06

3.5
0.14

397.0
15.63

1504.3

147.8

0.1482

82.79
182.53

EE738101D

738172

3.3
0.13

284.0
11.18

6.4
0.25

401.1
15.79

1756.1

131.0

0.1601

105.97
233.61

EE822101D

822175

3.3
0.13

281.9
11.10

6.4
0.25

404.9
15.94

1363.4

186.1

0.1442

84.48
186.26

EE134102D

134143

3.3
0.13

280.0
11.02

6.4
0.25

339.0
13.35

1327.7

187.2

0.1474

33.76
74.46

EE324103D

324160

6.4
0.25

287.3
11.31

3.3
0.13

376.0
14.80

1736.8

222.5

0.1559

121.01
266.81

EE435103D

435165

3.3
0.13

289.0
11.38

3.3
0.13

376.0
14.80

1480.2

123.2

0.1787

80.70
177.89

HM252347D

HM252310

3.5
0.14

285.0
11.22

3.3
0.13

392.0
15.43

1504.3

147.8

0.1482

76.62
168.90

HM252347D

HM252315

3.5
0.14

285.0
11.22

3.5
0.14

397.0
15.63

1504.3

147.8

0.1482

79.98
176.34

HM252348D

HM252315

6.4
0.25

291.0
11.46

3.5
0.14

397.0
15.63

1504.3

147.8

0.1482

81.35
179.37

EE823103D

823175

6.4
0.25

295.5
11.63

3.3
0.13

399.0
15.71

1686.2

159.0

0.1813

119.46
263.37

LM451349D

LM451310

1.5
0.06

281.0
11.06

3.3
0.13

335.0
13.19

1554.1

212.2

0.1536

30.19
66.56

EE275106D

275155

3.3
0.13

290.0
11.42

6.4
0.25

366.0
14.41

1451.8

201.3

0.1555

49.03
108.10

EE275106D

275158

3.3
0.13

290.0
11.42

6.4
0.25

371.0
14.61

1451.8

201.3

0.1555

51.81
114.20

EE275106D

275160

3.3
0.13

290.0
11.42

6.4
0.25

373.0
14.69

1451.8

201.3

0.1555

53.51
117.97
