BT4B 332647 G/HA1
Size: 330.2X444.5X301.625X301.625mm
Applications:
Low- and medium-speed rolling mills

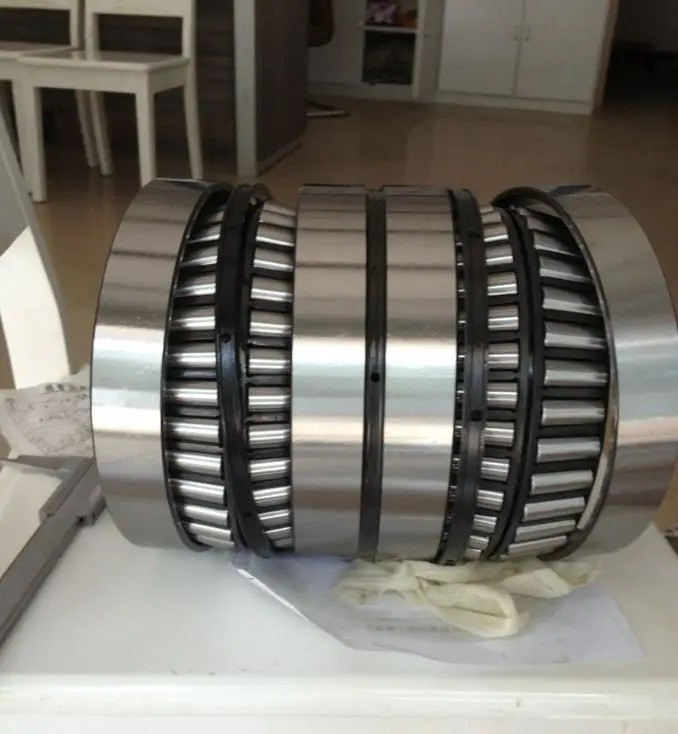

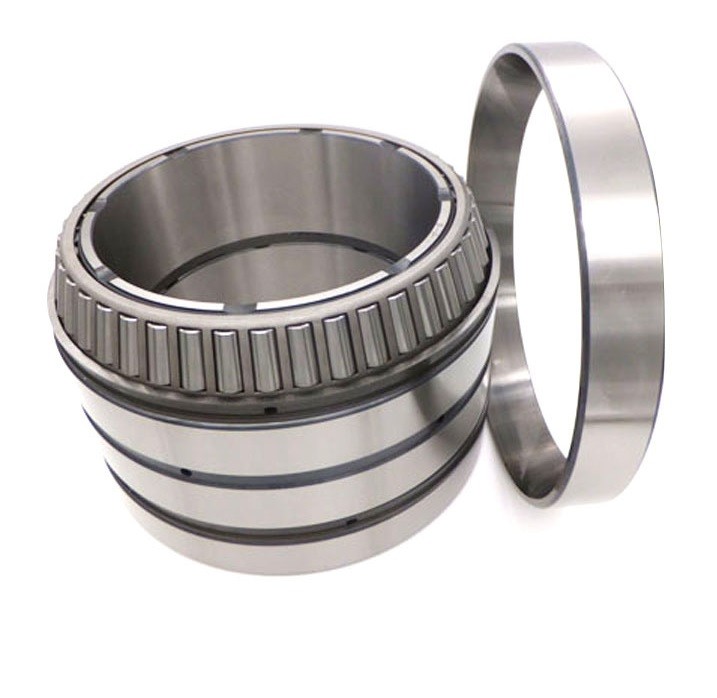

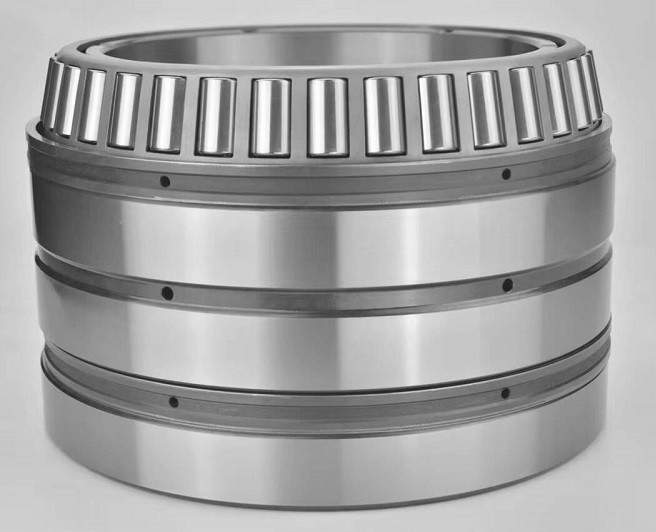

TQO bearings are directly mounted and comprised of two double inner races, two single and one double outer race, with an inner race
spacer and two outer race spacers.
Slots in the inner race spacer permit lubricant to flow from the bearing chamber to the roll neck. The inner race spacers are hardened to
minimize face wear.
Size range:
ID 50.800 mm to 1500.000 mm (2.0000 in. to 59.0551 in.)
OD 83.337 mm to 2032.000 mm (3.2810 in. to 80.0000 in.)
Design Attributes:
Two double cones, two single cups and a double cup with a cone spacer and two cup spacers.
Spacers have slots or holes for lubrication.
Cone spacers are hardened to reduce face wear.
Numbered serially to assure correct installation sequence.
Applications:
Low- and medium-speed rolling mills
Simple Drawing
Technical Data:
BT4B 332647 G/HA1 rolling mill bearing four row taper roller bearing
Part Number | Principal dimensions | Basic load ratings | ||||
dynamic | static | |||||
d[mm] | D[mm] | B[mm] | T[mm] | C[kN] | C0[kN] | |
BT4B 331161 AG/HA4 | 317.5 | 447.675 | 327.025 | 327.025 | 4 730 | 10 800 |
BT4B 331161 BG/HA1 | 317.5 | 447.675 | 327.025 | 327.025 | 4 730 | 10 800 |
BT4B 332647 G/HA1 | 330.2 | 444.5 | 301.625 | 301.625 | 3 690 | 9 650 |
BT4-8113 E2/C500 | 330.302 | 438.023 | 247.65 | 254 | 3 625 | 6 400 |
331381 | 333.375 | 469.9 | 342.9 | 342.9 | 4 897 | 11 400 |
BT4-8160 E8/C475 | 343.052 | 457.098 | 254 | 254 | 3 600 | 7 100 |
BT4-8160 E81/C400 | 343.052 | 457.098 | 254 | 254 | 3 600 | 7 100 |
BT4-8160 E81/C475 | 343.052 | 457.098 | 254 | 254 | 3 600 | 7 100 |
BT4B 328817 E1/C475 | 343.052 | 457.098 | 254 | 254 | ||
BT4B 328817 EX1/C475 | 343.052 | 457.098 | 254 | 254 | ||
BT4B 331228 G/HA1C200 | 346.075 | 488.95 | 358.775 | 358.775 | 5 280 | 12 500 |
BT4-8070 G/HA1VA901 | 347.662 | 469.9 | 292.1 | 292.1 | 3 910 | 8 500 |
331092 A | 347.663 | 469.9 | 292.1 | 292.1 | 3 800 | 10 200 |
331271 | 355.6 | 488.95 | 317.5 | 317.5 | 4 130 | 11 000 |
BT4-8162 E8/C480 | 355.6 | 482.6 | 265.113 | 269.875 | 4 150 | 8 150 |
BT4-8162 E81/C480 | 355.6 | 482.6 | 265.113 | 269.875 | 4 150 | 8 150 |
BT4B 328870 EX1/C300 | 355.6 | 482.6 | 265.113 | 269.875 | ||
BT4B 328912 E1/C300 | 355.6 | 488.95 | 317.5 | 317.5 | 5 100 | 10 000 |
BT4B 328912 E3/C675 | 355.6 | 488.95 | 317.5 | 317.5 | 5 100 | 10 000 |
332059 | 360 | 510 | 380 | 380 | 5 610 | 14 300 |
331159 A | 368.3 | 523.875 | 382.588 | 382.588 | 6 270 | 15 000 |
BT4-8033 G/HA1 | 380 | 560 | 390 | 360 | 6 710 | 13 700 |
BT4-8086 G/HA1 | 380 | 540 | 300 | 300 | 4 180 | 10 000 |
331149 E/C675 | 384.175 | 546.1 | 400.05 | 400.05 | 8 000 | 16 600 |
BT4-8025 G/HA1C300VA903 | 384.175 | 546.1 | 400.05 | 400.05 | 6 160 | 15 000 |
BT4B 334128/HA1 | 384.175 | 546.1 | 400.05 | 400.05 | 6 440 | 16 600 |
BT4B 334042 E1/C575 | 385.762 | 514.35 | 317.5 | 317.5 | 3 910 | 10 000 |
BT4B 332824 E/C475 | 395 | 545 | 268 | 288.9 | 4 800 | 9 500 |
BT4B 332824/HA1 | 395 | 545 | 268 | 288.9 | 3 910 | 9 500 |
BT4-8147 G/HA1 | 400 | 600 | 308 | 308 | 5 500 | 11 000 |
