Bore Dia 368.249 mm
Bore Dia Tolerance -0.04mm to 0
Outer Dia 523.875 mm
Outer Dia Tolerance -0.05mm to 0
Double Cone Width 214.312 mm
Double Cone Width Tolerance -0.25mm to 0
Bearing Width 214.312 mm

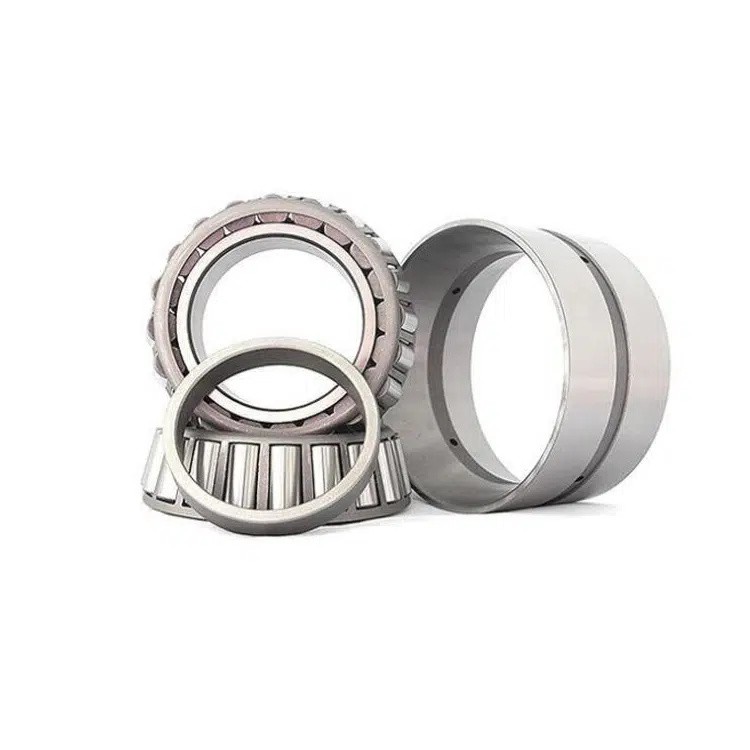

BT2B 332603/HA1 Double Row Tapered Roller Bearings
TDO design bearings have a double row outer ring and two single inner rings that usually have an intermediate ring between them. Their roller sets are arranged back-to-back (O-arrangement), which enables them to accommodate tilting moments. Design variants include features such as a helical groove in the bore or lubrication grooves in the side faces of the bearing rings.
Features:
High radial load carrying capacity
Accommodate axial loads in both directions
Relatively high stiffness
Accommodate tilting moments
Many variants, including a helical groove in the bore or lubrication grooves in the side faces of the bearing rings
Ready to mount
Specifications:
Part Number | BT2B 332603/HA1 |
System of Measurement | Metric |
Type | Bearing |
Bearing Type | Roller |
Roller Bearing Type | Tapered Roller |
For Load Direction | Combined Radial and Thrust |
Construction | Double Row |
Seal Type | Open |
Cups Type | Standard |
Bore Dia | 368.249 mm |
Bore Dia Tolerance | -0.04mm to 0 |
Outer Dia | 523.875 mm |
Outer Dia Tolerance | -0.05mm to 0 |
Double Cone Width | 214.312 mm |
Double Cone Width Tolerance | -0.25mm to 0 |
Bearing Width | 214.312 mm |
Bearing Width Tolerance | +0.4mm to -0.4mm |
Abutment Diameter Shaft | 438 mm |
Abutment Diameter Housing | 438 mm |
Chamfer Dimension Inner Ring | min.6.4 mm |
Chamfer Dimension Outer Ring | min.1.5 mm |
Dynamic Radial Load | 760500 lbf |
Static Radial Load | 1687500 lbf |
Ring Material | 52100 Chrome Steel |
Roller Material | 52100 Chrome Steel |
Fatigue Load Limit | 131625 lbf |
Comparative Radial Load Rating | 186750 lbf |
Comparative Axial Load Rating | 61425 lbf |
Distance Pressure Point | 196 mm |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | Standard (Available in C3/C4/C5) |
RoHS | Compliant |
REACH | Compliant |
Weight | 308.65 lb |
