Part Number BT2B 328187/HA2
System of Measurement Metric
Type Bearing
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Cups Type Standard

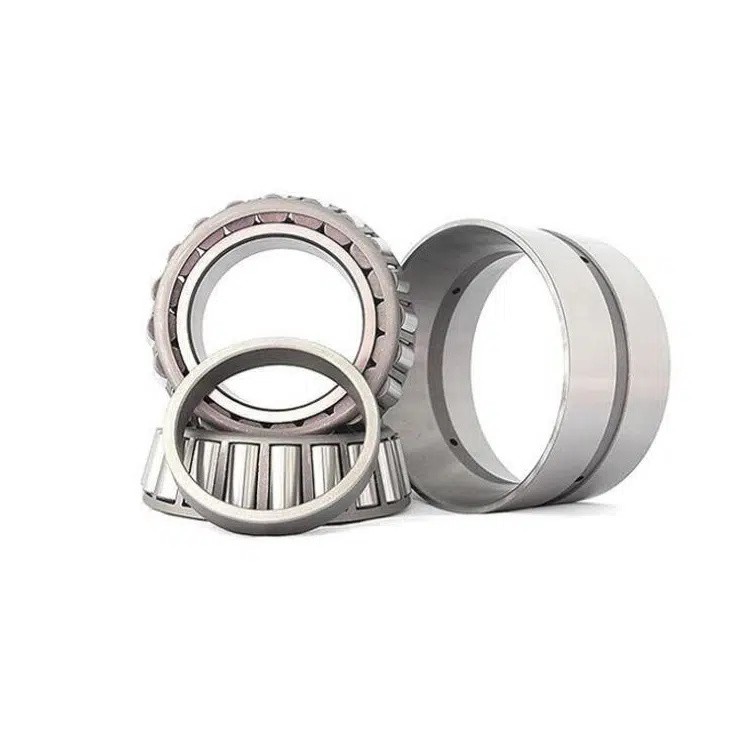

BT2B 328187/HA2 Double Row Tapered Roller Bearings
TDO design bearings have a double row outer ring and two single inner rings that usually have an intermediate ring between them. Their roller sets are arranged back-to-back (O-arrangement), which enables them to accommodate tilting moments. Design variants include features such as a helical groove in the bore or lubrication grooves in the side faces of the bearing rings.
Features:
High radial load carrying capacity
Accommodate axial loads in both directions
Relatively high stiffness
Accommodate tilting moments
Many variants, including a helical groove in the bore or lubrication grooves in the side faces of the bearing rings
Ready to mount
Specifications:
Part Number | BT2B 328187/HA2 |
System of Measurement | Metric |
Type | Bearing |
Bearing Type | Roller |
Roller Bearing Type | Tapered Roller |
For Load Direction | Combined Radial and Thrust |
Construction | Double Row |
Seal Type | Open |
Cups Type | Standard |
Bore Dia | 260.35 mm |
Bore Dia Tolerance | -0.035mm to 0 |
Outer Dia | 422.275 mm |
Outer Dia Tolerance | -0.045mm to 0 |
Double Cone Width | 178.592 mm |
Double Cone Width Tolerance | -0.2mm to 0 |
Bearing Width | 178.592 mm |
Bearing Width Tolerance | +0.35mm to -0.25mm |
Abutment Diameter Shaft | 331 mm |
Abutment Diameter Housing | 331 mm |
Chamfer Dimension Inner Ring | min.6.8 mm |
Chamfer Dimension Outer Ring | min.1.5 mm |
Dynamic Radial Load | 504000 lbf |
Static Radial Load | 911250 lbf |
Ring Material | 52100 Chrome Steel |
Roller Material | 52100 Chrome Steel |
Fatigue Load Limit | 79875 lbf |
Comparative Radial Load Rating | 123750 lbf |
Comparative Axial Load Rating | 40275 lbf |
Distance Pressure Point | 158 mm |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | Standard (Available in C3/C4/C5) |
RoHS | Compliant |
REACH | Compliant |
Weight | 190.70 lb |
