35222EY Double Row Tapered Roller Bearing

TDO - DOUBLE OUTER RING

35222EY Double Row Tapered Roller Bearings

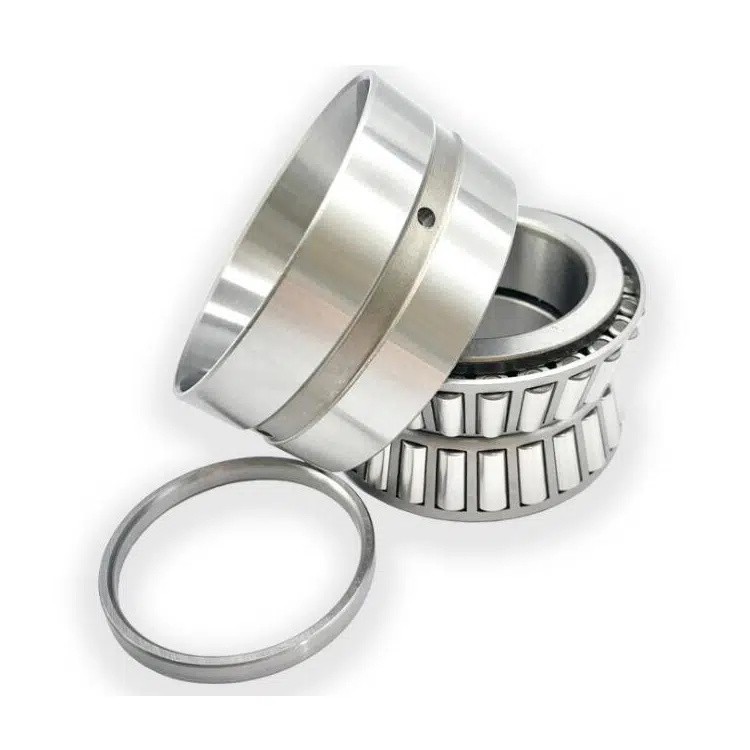

This has a one-piece (double) outer ring and two single inner rings. It is usually supplied complete with an inner-ring spacer as a pre-set assembly. This configuration gives a wide effective bearing spread and is frequently chosen for applications where overturning moments are a significant load component. TDO bearings can be used in fixed (locating) positions or allowed to float in the housing bore, for example, to compensate for shaft expansion. TDOCD outer rings also are available in most sizes. These outer rings have holes in the O.D. that permit the use of pins to prevent outer ring rotation in the housing bore.

Size range:

ID 25.400 mm to 1200.150 mm (1.0000 in.  to 47.2500 in.)

OD 30.480 mm to 2460.000 mm (1.2000 in.  to 96.8504 in.)

Design Attributes:

Double cup and two single cones, with or without a spacer.

When spacers are used, bearing is furnished as a preset, matched assembly.

Cup features groove and lubrication holes in the OD.

Spacers available with or without lubricant grooves and holes.

Applications:

Heavy-duty gear drives

Various industrial configurations

Specifications:
